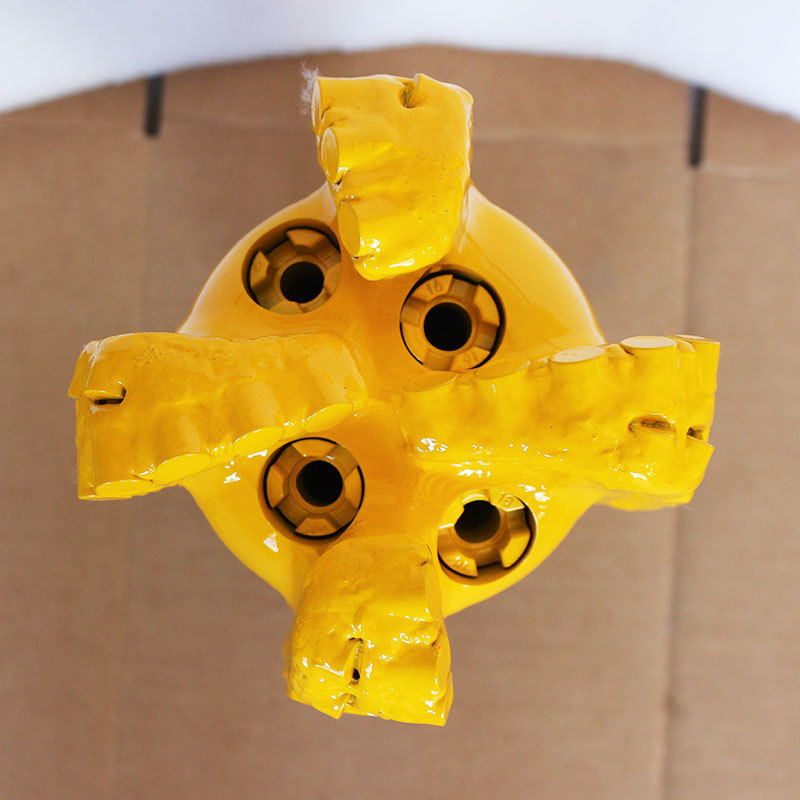

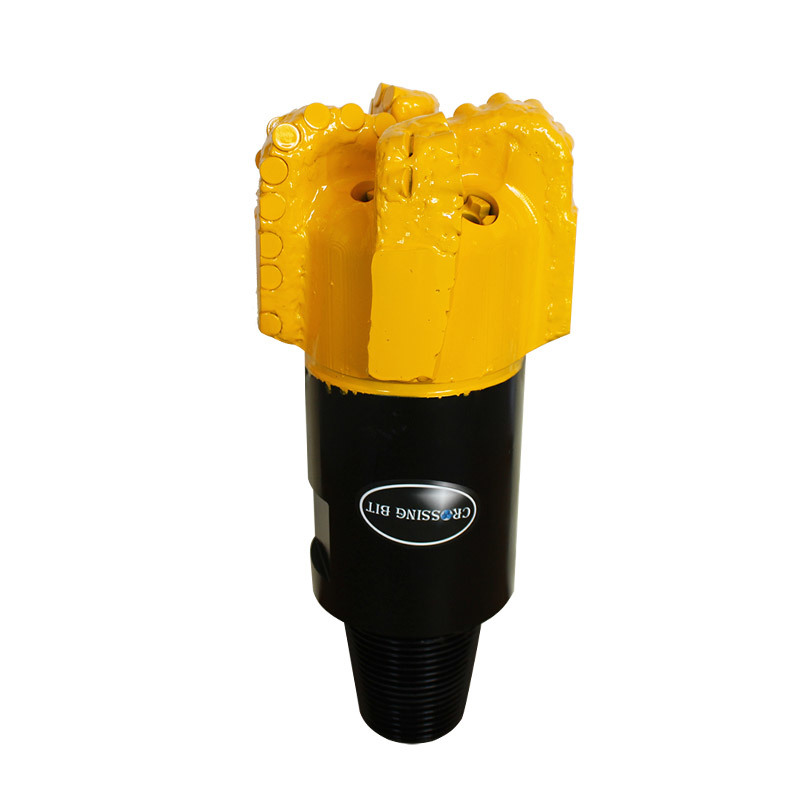

6 inch 1904 steel body PDC bit
Application:water well,oil well,geological,geothermal,HDD,etc
Recommended rock formation: soft formation with sticky layers and low compressive strength, such as clay, lignite, shale, sandstone, etc.
Recommended rock formation: soft formation with sticky layers and low compressive strength, such as clay, lignite, shale, sandstone, etc.
Category:
- 产品描述
6 inch 1904 steel body PDC bit
-
- Commodity name: 6 inch 1904 steel body PDC bit
- Commodity ID: cp3002
<span>Application:</span>water well,oil well,geological,geothermal,HDD,etc<br /> <span>Recommended rock formation: </span>soft formation with sticky layers and low compressive strength, such as clay, lignite, shale, sandstone, etc.
PRODUCT SPECIFICATIONS
product name 6 inch 1904 steel body PDC bit size 6 inch,152.4mm model number 1904 body type steel body type primary cutter size 19mm number of nozzle 4 number of blade 4 connection 3 1/2" Reg pin application water well,oil well,geological,geothermal,HDD,etc weight 30kg certificate SY/T5164,ISO9001:2008 ROCOMMENDED ROCK FORMATION soft formation with sticky layers and low compressive strength, such as clay, lignite, shale, sandstone, etc. RECOMMENDED OPERATING PARAMETERS
Rotary Speed 60~260rpm Weight On Bit 20~100KN Key words:- S1604
