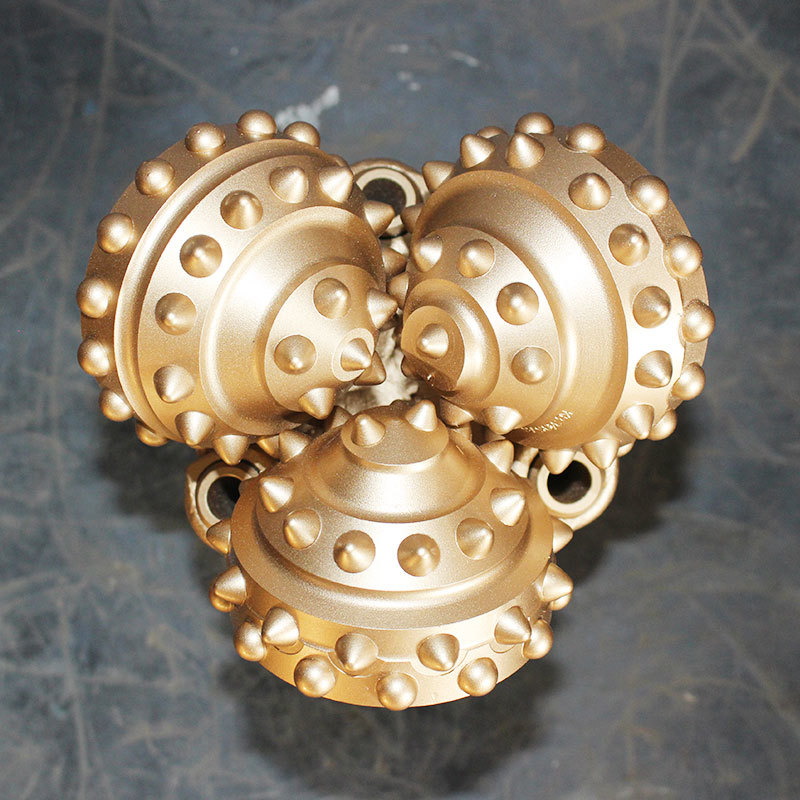

6 3/4 inch IADC635 TCI tricone bit
Application: blast hole drilling, exploration, etc
Recommended rock formation: medium hard and abrasive formation with high compressive strength, such as limestone, sandstone, dolomite, etc.

    6 3/4 inch IADC635 TCI tricone bit

    • 产品描述
    • Commodity name: 6 3/4 inch IADC635 TCI tricone bit

    <span>Application:</span> blast hole drilling, exploration, etc<br /> <span>Recommended rock formation: </span>medium hard and abrasive formation with high compressive strength, such as limestone, sandstone, dolomite, etc.

    PRODUCT SPECIFICATIONS

    product name 6 3/4 inch IADC635 TCI tricone bit
    size 6 3/4 inch,171.5mm
    model number IADC635
    tooth type tungsten carbide insert
    connection 3 1/2" API Reg pin
    bearing rubber sealed roller bearing
    Nozzle three jet nozzles
    application blast hole drilling, exploration, etc
    weight 23kg
    certificate API7-1,SY/T5164,ISO9001:2008
    RECOMMENDED ROCK FORMATION
    medium hard and abrasive formation with high compressive strength, such as limestone, sandstone, dolomite, etc.

    RECOMMENDED DRILLING PARAMETERS FOR APPLICATION

    Weight on bit 20250-40500lb
    Rotary speed 100-60rpm

    Hebei Crossing Drill Bit Manufacture CO.,LTD is a professional supplier of drilling tools,including tricone bit,PDC tricone bit,Hole opener,single cone bit and so on.With years of study and refining of the introduced technology, we have succeeded in the field of product research with proprietary intellectual property rights.Also, we have made major breakthrough in the lines of analogue simulation in bottom-hole flow field,profile optimization,design of inserts arrangement and low torque,material and manufacturing techniques etc. As a result, our products own better characters of service and ranges of application.Mainly used for oil and gas,mining,geothermal,construction and so on.

    The products of our company have achieved industrialization and serialization.Besides our company has always laying importance on the technical exchanges and cooperation with the counterparts both at home and abroad.Our products have been sold all over the world, including the United States, England,Canada,Brazil,Italy,Saudi Arabia,Korea, India, and Poland and so on.

    Main products

    tricone bit(mill tooth and tungsten carbide insert tricone bit)

    PDC bit(matrix body and steel body PDC bit)

    hole opener(HDD rock reamer,barrel reamer,fluted reamer,etc)

    drag bit(step drag bit,PDC drag bit,chevron drag bit,etc)

    accessories(roller cone,bit breaker,ring gauge,nozzle ,etc)



    Milled tooth tricone bits

    1, Soft formations ( IADC 114 - 117 )
    These bits are designed to drill the softest formations such as soft shales,red beds, and clays, with high durability and maximum penetration rates.

    2, Soft to medium formations( IADC 121,124,126,134,136,137 )
    These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.

    3, Medium to medium hard formations ( IADC 213,214,215,217)
    These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks

    4. Hard formations(IADC 317, 337)
    These bits are designed to drill formations such as hard limestone, dolomite, hard sandstone and chert, etc.
