Recommended rock formation: medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
Category:
- 产品描述

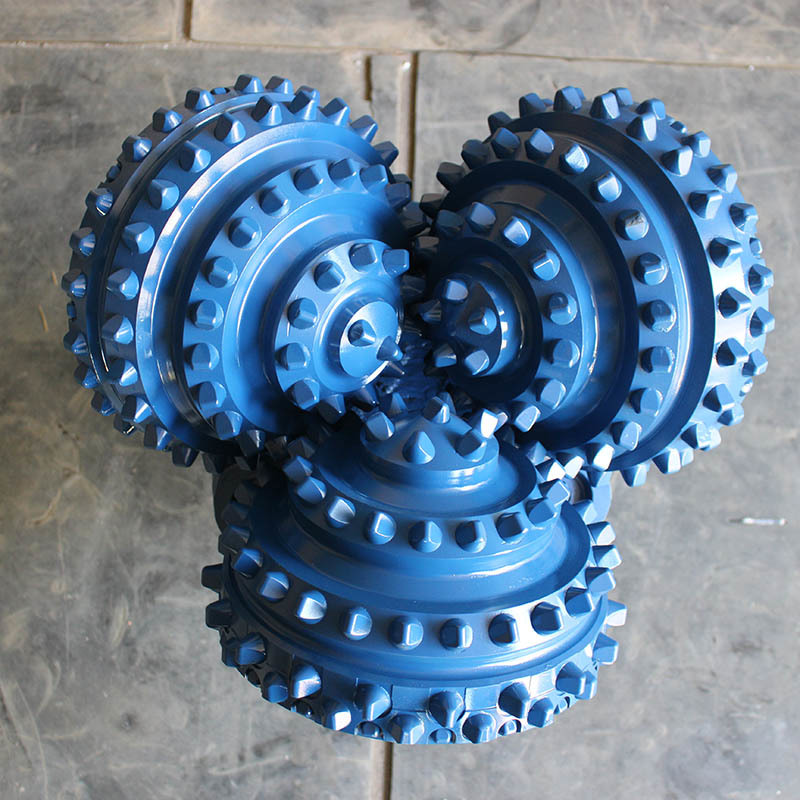

17 1/2 inch IADC537 TCI tricone bit reverse circulation
-
- Commodity name: 17 1/2 inch IADC537 TCI tricone bit reverse circulation
<span>Application:</span>water well,oil well,geological,geothermal drilling,etc <br /> <span>Recommended rock formation: </span>medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc.
PRODUCT SPECIFICATIONS
product name 17 1/2 inch IADC537 TCI tricone bit reverse circulation size 17 1/2 inch,444.5mm model number IADC537 tooth type tungsten carbide insert connection 7 5/8" Reg pin bearing rubber sealed journal bearing Nozzle three jet holes with big center nozzles application water well,oil well,geological,geothermal drilling,etc weight 270kg certificate SY/T5164,ISO9001:2008 RECOMMENDED ROCK FORMATION medium soft with low compressive strength and harder abrasive stringers,such as shale,hard gypsolyte,soft limestone,sandstone and dolomite with stringers,etc. RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Type&IADC code 417 437 447 517,527 537,547 617,627 637,647 737,837 WOB(KN/mm) 0.35~0.90 0.35~0.95 0.35~1.00 0.35~1.05 0.35~1.05 0.35~1.05 0.70~1.20 0.70~1.20 RPM(r/min) 140~70 140~60 140~60 120~50 110~40 80~40 70~40 70~40 Tricone bit-Seal Definitions
In a rotating bearing, the two working sides of a seal are called the static energizer and the dynamic wear face. These two parts are directly opposite each other, with the energizing portion bearing on the gland and the dynamic wear face bearing against the rotating unit. For the energizing portion of the seal to function properly, it must have a surface against which to react. This is provided by a channel-shaped groove called a seal gland.
The wearing portion of the seal must have the capability to withstand the heat and abrasion generated as the rotating surface passes over it. The energizer, when functioning correctly, is not a high-wear area. Ideally, it simply bears against the gland and provides the pushing energy that maintains firm contact between the wear surface and rotating cone.
Hebei Crossing Drill Bit Manufacture CO.,LTD is a professional supplier of drilling tools,including tricone bit,PDC tricone bit,Hole opener,single cone bit and so on.With years of study and refining of the introduced technology, we have succeeded in the field of product research with proprietary intellectual property rights.Also, we have made major breakthrough in the lines of analogue simulation in bottom-hole flow field,profile optimization,design of inserts arrangement and low torque,material and manufacturing techniques etc. As a result, our products own better characters of service and ranges of application.Mainly used for oil and gas,mining,geothermal,construction and so on.
The products of our company have achieved industrialization and serialization.Besides our company has always laying importance on the technical exchanges and cooperation with the counterparts both at home and abroad.Our products have been sold all over the world, including the United States, England,Canada,Brazil,Italy,Saudi Arabia,Korea, India, and Poland and so on.
Main products
tricone bit(mill tooth and tungsten carbide insert tricone bit)
PDC bit(matrix body and steel body PDC bit)
hole opener(HDD rock reamer,barrel reamer,fluted reamer,etc)
drag bit(step drag bit,PDC drag bit,chevron drag bit,etc)
accessories(roller cone,bit breaker,ring gauge,nozzle ,etc)
Milled tooth tricone bits
1, Soft formations ( IADC 114 - 117 )
These bits are designed to drill the softest formations such as soft shales,red beds, and clays, with high durability and maximum penetration rates.2, Soft to medium formations( IADC 121,124,126,134,136,137 )
These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.3, Medium to medium hard formations ( IADC 213,214,215,217)
These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks4. Hard formations(IADC 317, 337)
These bits are designed to drill formations such as hard limestone, dolomite, hard sandstone and chert, etc.
